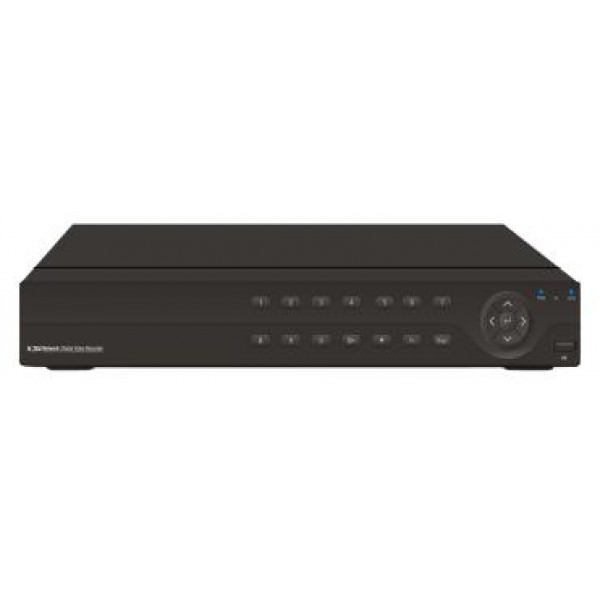

CB-HDR-6616 16Ch. H.264 D1 Real Time DVR
- VGA output resolution is 1024*768/1280*1024/1366*768/1920*1080
- Support Multi language OSD
- CMS support view
- Support mobile OS: iPhone iPad Android
- Each DVR support 10 users viewing at same time
- Support P2P & iCloud function
Technical Specification:
| Model | CB-HDR-6616 |
| Channel & Compression | 16CH H.264 |
| System format | PAL/NTSC |
| Video input | BNC x 16 (1.0Vp-p/75Ω ) |
| Video output | BNC x 1 (1.0Vp-p/75Ω ), VGA x 1 |
| HDMI & VGA Output Resolution | 1024*768 / 1280*1024 / 1366*768 / 1920*1080 |
| D1 record frame rate | 2ch*25fps(PAL) |
| 2ch*30fps (NTSC) | |
| CIF record frame rate | 16ch*25fps (PAL) |
| 16ch*30fps (NTSC) | |
| D1 playback frame rate
|
2D1*25fps+14CIF*25fps(PAL) |
| 2D1*30fps+14CIF*30fps (NTSC) | |
| CIF playback frame rate | 16ch*25fps (PAL) |
| 16ch*30fps (NTSC) | |
| Network resolution/fps | CIF/QCIF |
| Audio | 4ch RCA input, 1CH RCA output |
| Alarm | x |
| Alarm trigger | Disk Fullalarm, Motion Detection Alarm, Video Loss Alarm |
| Record mode | Manual / Timing / Motion Detection |
| Remote control | 100M RJ-45 |
| USB port | Two USB 2.0 Host |
| Hard disk | 1*5000G |
| DVD-RW | USB DVD-RW |
| PTZ | RS485 Interface |
| Power | 12V/2A |
| Power supply | < 15W |
| Operating temp. | -10°C – 50°C, 10% – 90% humidity |
| Weight | About 2.0kg (including packaging) |
| Dimension | 300*220*45 (mm) |
