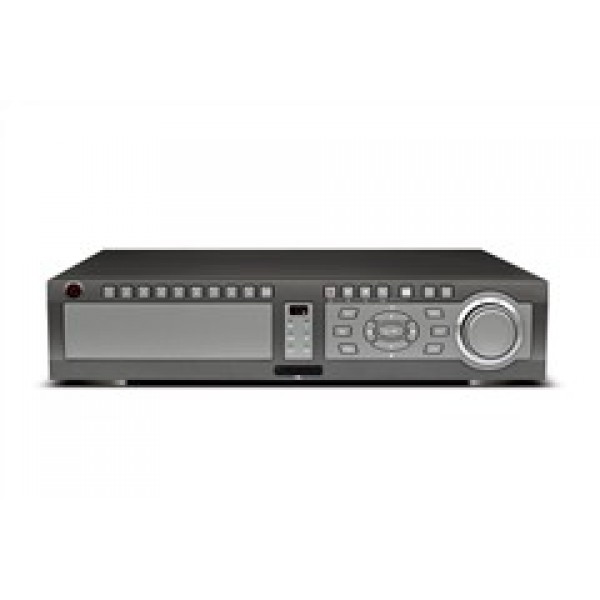

CB-HDR8824 24Ch DVR
Specifications
| Compression | H.264 | ||||
| Image system | NTSC , PAL | ||||
| Video Input | BNC x 16 (1 Vp-p,75Ω ) | BNC x 24 (1 Vp-p,75Ω ) | BNC x 32 (1 Vp-p,75Ω ) | ||
| Video Output | BNC x 1 (1 Vp-p,75Ω ), 1×VGA; 1×HDMI; 1×YPbPr | ||||
| Video Output — Spot | BNC x 1 (1 Vp-p,75Ω ) | ||||
| Video Loop Out | BNC x 16 (1 Vp-p,75Ω ) | No support | |||
| HDMI output resolution | 1920×1080i50/1920×1080i60 | ||||
| YPbPr output resolution | 1920×1080i50/1920×1080i60 | ||||
| VGA output resolution | 1280×1024 | ||||
| Live output mode | In D1 record mode,16/20/25/30/36-split in single field and 1/4/9-split is double field for each channel in CIF record mode all channels are double filed | ||||
| D1 record frame rate | 100fps (PAL)/120fps(NTSC) | 150fps(PAL)/180fps(NTSC) | 200fps(PAL)/240fps(NTSC) | ||
| CIF record frame rate | 400fps (PAL)/480fps(NTSC) | 600fps(PAL)/720fps(NTSC) | 800fps(PAL)/960fps(NTSC) | ||
| D1 Playback frame rate | 100fps (PAL)/120fps(NTSC) | ||||
| CIF Playback frame rate | 400fps (PAL)/480fps(NTSC) | ||||
| Network resolution/fps | CIF>10 fps for each channel | ||||
| Audio | RCA×16input, RCA×1output | RCA×8input, RCA×1output | RCA×16input, RCA×1output | ||
| Alarm input | 16CH | 8CH | 16CH | ||
| Alarm output | Relay output: Normal open (NO); Normal close (NC); COM | ||||
| Alarm mode | sensor input alarm; disk full alarm; motion detection alarm; video loss alarm | ||||
| Record mode | Time/sensor/motion detection | ||||
