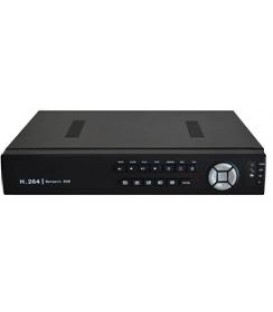

CB-SDR9008i 8CH D1 H.264 DVR

8CH D1 H.264 DVR

◆ Compression algorithm upgraded to H.264 High Profile，more advanced video compression technique makes the code

stream lowered at least 30%.

◆ Completely new graphics operating interface design, to let you experience easily and conveniently.

◆ CAMPRO SDVR combines the functions of DVR/HVR/NVR together, multi-mode input ( support pure analog input,

support analog + network HD video input, support pure network HD video input). No need to worry how to be compatible with

analog system, to choose DVR or HVR, just one SDVR can work.

◆ Super Strong processing capacity: can realize 8CH D1 recording.

◆ Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain the image quality,

extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.

◆ Support super cloud service (specialized website for super cloud service: www.dvrcenter.net), one step to do remote control

easily & conveniently without any complicated setting.

◆ Powerful net service（support DHCP、PPPOE、FTP、DNS、DDNS、ARSP(www.dvrcenter.com)、NTP、UPNP、EMAIL、

IP authority、IP search、alarm center, etc），complete enclosure（WEB、CMS、SDK），to easily achieve interconnection.

◆ Built-in IE plugs, no need to install from CD disk independently.

◆ Support 3G & WIFI extension.

◆ Support multi-browser（IE、Chrome、Firefox、Safari）.

◆ Support all kinds of mobile monitor（iPhone,Windows Mobile,BlackBerry,Symbian, Android）

◆ Multiplex operation : Preview, recording, playback, backup, network live, mobile phone view; all operations are independent

of each other.

◆ Support many recording modes: Auto-continuing recording, timing recording, motion detection recording.

◆ Playback mode support normal play, speed play, fast back play, manual and single-frame play.

◆ Many backup device: USB flash disk, USB portable HDD and network.

◆ Support alarm triggered recording will send alerts matter (some models support sending picture) to the designated email.

◆ Support pre-alarm recording (before 10 sec),not lose any suspicious screen.

◆ Twenty kinds of language（English、Finnish、French、German，Greek、Italian、Japanese，Polish、Portuguese、Russian，

Spanish、Thai、Simplified Chinese、Chinese-Traditional、Turkish, etc）,break up country limitation.

◆ System auto recovery to power after power reconnected, and return to the pre-power-down state

System

Main processor Industrial grade embedded micro controller chip Huawei HIS chipset Hi3520A

Operating system Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback,

multi-channel multi-user network operation, USB back up

Display

Operation interface 16 bit real color GUI interface support mouse operation

（Take all analog input as an example, others are depended on the selected channel

Display screen mode）

1/4/8/9 screen

Video

Video standard PAL（625 lines，50fps）；NTSC（525lines，60fps）

Image encode H.264 (High profile)

Monitor quality Monitor：D1；VGA：1080P ；HDMI：1080P

Playback quality Max support 1080P under HVR and NVR mode；Max support D1 under DVR mode

Encode capability 8CH HD1 / D1real time(DVR mode)

Decode capability 8CH HD1/1CH D1 real time(DVR mode)

Multi-mode video

input

★ DVR mode :8 *D1

★ HVR mode:2 *D1+(1*1080P+1*720P)

★ NVR mode:8*960H / 4*720P / 2*1080P / 1*720P+7*D1 / 1*1080P+1*720P+2*D1

Motion detection

Each channel can set 192（16*12）detection area；can set multi-level of flexibility (for

local analog channel only)

Audio compression G.711A

Record and playback

Record mode Manual、alarm、motion detection、timing

Local Playback

1-9ch playback synchronously; Max support 4CH playback synchronously under 8CH

D1 recording(DVR mode)

Video search Time、date、event、channel search

Storage and back up

Space occupation

Video：CIF 4~5G/day*channel， D1 16~20G/day*channel；

audio：691.2M/day*channel

Video storage Local HDD, Network

Backup mode Network backup、USB portable HDD、USB DVD-RW

Infterface

Video input 8CH BNC

Video output 1CH BNC，1CH VGA，1CH HDMI

Audio input/output 8CH RCA / 1CH RCA

Alarm input/output 1CH / 1CH

Network port RJ45 10M/100M self-adaptive Ethernet port

PTZ control 1 RS485；support multi kinds of PTZ Protocol

USB port 2*USB2.0

HDD port 2 SATA（each max support 2048G）

Wireless port 3G、WIFI(extension via USB port)

Tour Yes

Remote control Yes

Power supply DC 12V / 4A

Dimension 370(Length) x 285(Width) x 72(Height)
