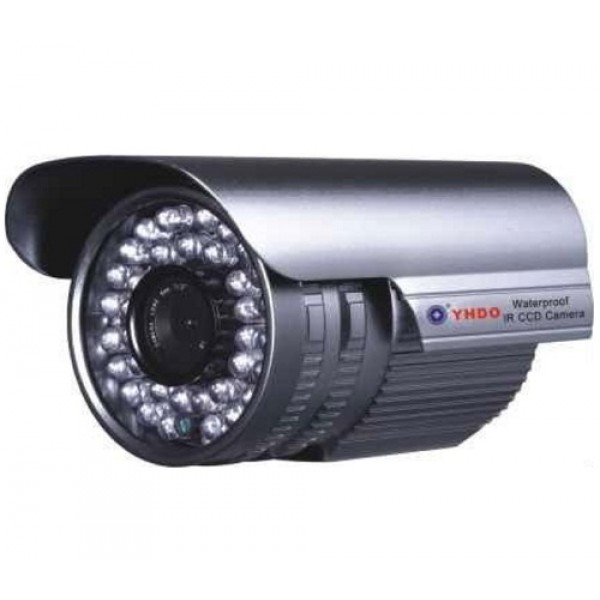

YH-555LT/YH-555ED/YH-555EH IR Waterproof Camera
Product Specifications
|
MODEL
|
YH-555LT
|
YH-555ED
|
YH-555EH
|
||
|
Pickup device
|
1/3 Sony CCD
|
1/3 SONY Super HAD CCD
|
|||
|
Number of pixels
|
PAL:512(H)X582(V)
NTSC:512(H)X494(V) |
PAL:886(H)×582（V）
NTSC:886(H)×494(V)
|
PAL:976(H)×582（V）
NTSC:976(H)×494(V)
|
||
|
System of signal
|
NTSC/PAL
|
||||
|
Horizontal resolution
|
480TVL
|
680TVL
|
700TVL
|
||
|
Minimum illumination
|
0Lux/F1.2 (IR ON)
|
||||
|
Lens
|
3.6mm/6mm(Optional)
|
||||
|
Backlight compensation
|
Auto
|
||||
|
Electronic shutter
|
1/50(1/60)～1/100,000sec
|
||||
|
White balance
|
Auto
|
||||
|
S/N ratio
|
＞48dB
|
＞52dB
|
|||
|
Gamma correction
|
＞0.45
|
||||
|
Operation temperature
|
-20℃~50℃
|
||||
|
Sync. system
|
Internal
|
||||
|
Video output
|
≤1.0Vp-p/75Ω
|
||||
|
Power supply
|
DC12V, 1A
|
||||
|
Dimensions(mm)
|
143(L)*96(W)*90(H)
|
||||
|
Wavelength
|
850nm
|
||||
|
Weight(g)
|
800g
|
||||
|
Waterproof Rate
|
IP66
|
||||
|
IR View Distance
|
35pcs Φ8 IR LED, 60M
|
||||
