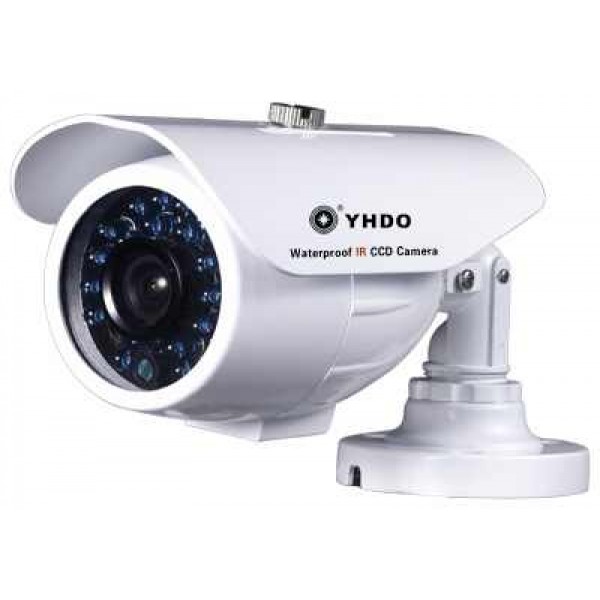

YHDO YH-8001 IR Bullet Camera
- Pickup device: 1/3” Sony CCD ,
- Number of pixels: PAL:512(H)×582(V) NTS:512(H)×492(V);
- System of signal: NTSC/PAL;
- Horizontal resolution: 450 TVL
Specification
|
MODEL |
YH-8001 |
| Pickup device | 1/3 SONY Super HAD CCD |
| Number of pixels | PAL:512(H)X582(V) | NTSC:512(H)X492(V) |
| System of signal | NTSC/PAL |
| Minimum illumination | 0Lux/F1.2 (IR ON) |
| Lens | 6mm/8mm（Optional） |
| Backlight compensation | Auto |
| Electronic shutter | 1/50(1/60)～1/100,000sec |
| White balance | Auto |
| S/N ratio | ＞48dB |
| Gamma correction | ＞0.45 |
| Operation temperature | -20℃~50℃ |
| Sync. System | Internal |
| Video output | ≤1.0Vp-p/75Ω |
| Power supply | DC12V,360mA（IR ON） |
| Dimensions(mm) | 129(L)×67(H) ×74(W) |
| Wavelength | 850nm |
| Weight(g) | 650g |
| Waterproof Rate | IP66 |
| IR View Distance | 24pcs Φ5 IR LED 20-30m |
