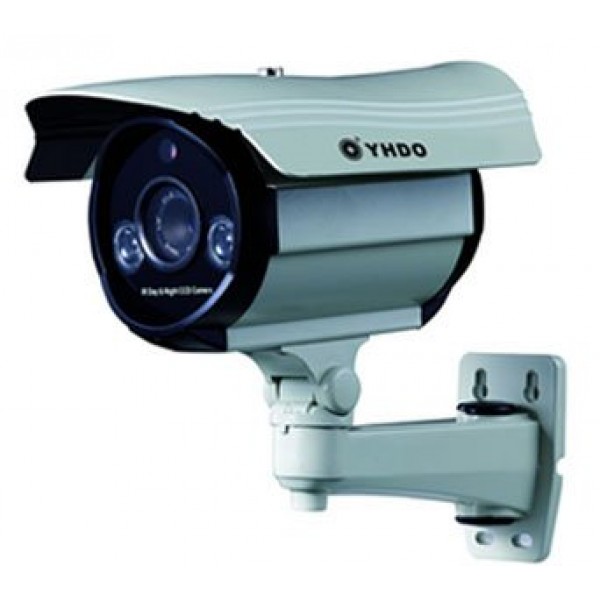

YHDO YH-W8099K/W8099KED/W8099KEH High Power Array Led Cam

Product Point

     Low power consumption, high brightness;
High efficiency, small attenuation
The light well, long service life

Technique index sign



Specification

MODEL	YH-W8099K	YH-W8099KED	YH-W8099KEH
Pickup device	1/3 Sony CCD	1/3 SONY Super HAD CCD
Number of pixels	PAL:512(H)X582(V) NTSC:512(H)X494(V)	PAL:886(H)×582(V) NTSC:886(H) ×494(V)	PAL:976(H)×582(V) NTSC:976(H) ×494(V)
System of signal	NTSC/PAL
Horizontal resolution	480TVL	680TVL	700TVL
Minimum illumination	0Lux/F1.2 (IR ON)
Lens	8mm/12mm/16mm(Optional)
Backlight compensation	Auto
Electronic shutter	1/50(1/60)～1/100,000sec
White balance	Auto
S/N ratio	＞48dB	＞52dB
Gamma correction	＞0.45
Operation temperature	-20℃~50℃
Sync. system	Internal
Video output	≤1.0Vp-p/75Ω
Power supply	DC12V, 2A/3A
Dimensions(mm)	215(L)×147(H) ×105(W)
Wavelength	850nm
Weight(g)	1190g
Waterproof Rate	IP66
IR View Distance	2pcs Array IR LED, 80M
